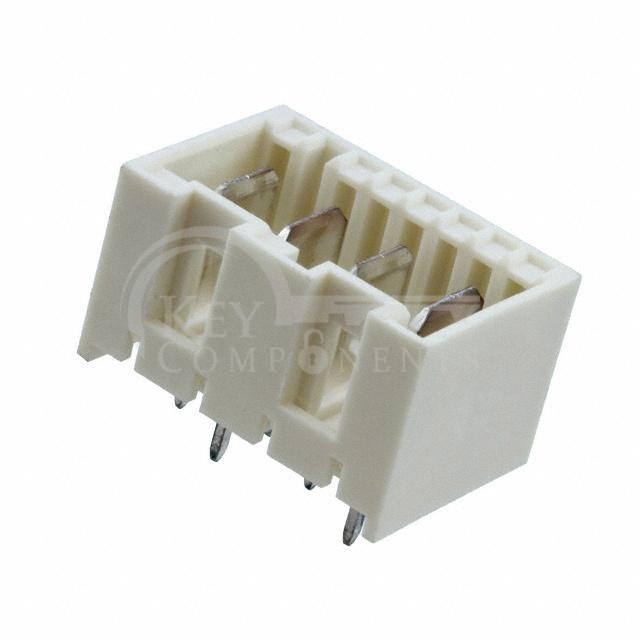

1971846-4

Manufacturer Part	1971846-4
Manufacturer	TE Connectivity AMP Connectors
Description	CONN HEADER VERT 4POS 5MM
Category	Connectors, Interconnects
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.504" (12.80mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Silver
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Silver
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Glow Wire Compliant
Operating Temperature:	-40°C ~ 120°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	20A
Voltage Rating:	250VAC
