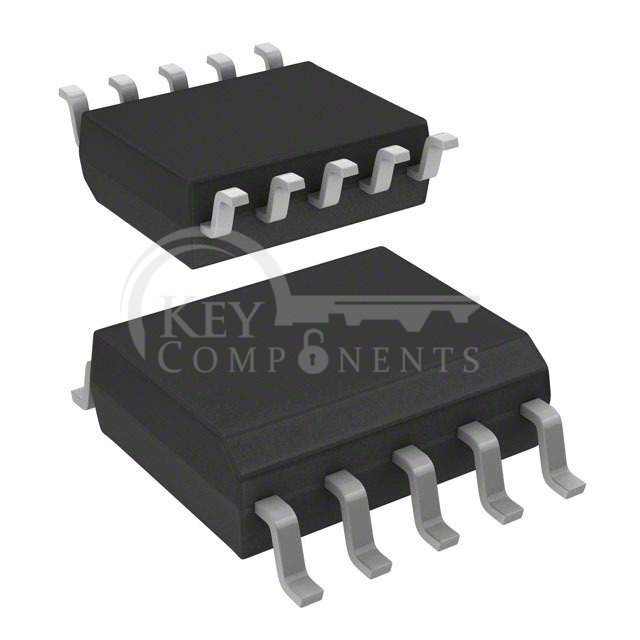

VIPER06XSTR

VIPER06XSTR

Manufacturer Part VIPER06XSTR
Manufacturer STMicroelectronics
Description IC OFFLINE SWITCH MULT TOP 10SSO
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Isolation:Either
Internal Switch(s):Yes
Voltage - Breakdown:800V
Topology:Buck, Flyback
Voltage - Start Up:13 V
Voltage - Supply (Vcc/Vdd):11.5V ~ 23.5V
Duty Cycle:70%
Frequency - Switching:30kHz
Power (Watts):8 W
Fault Protection:Current Limiting, Open Loop, Over Temperature
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:10-SOP (0.154", 3.90mm Width)
Supplier Device Package:10-SSOP
Mounting Type:Surface Mount
