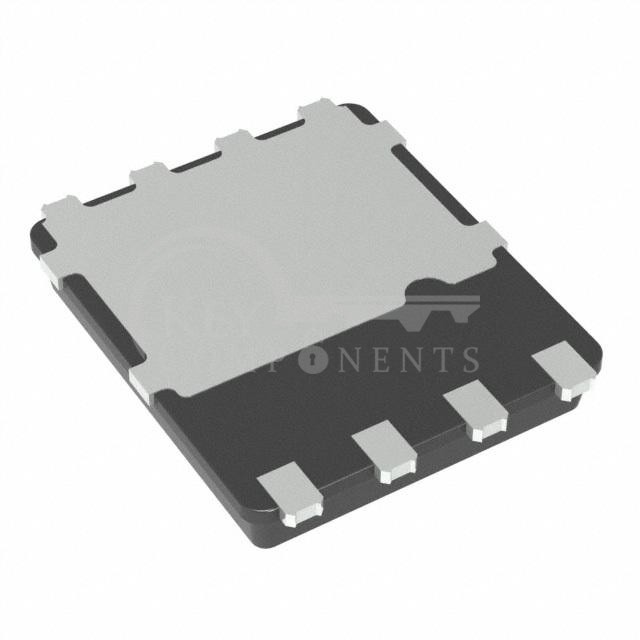

STPS3045DJFY-TR

STPS3045DJFY-TR

Manufacturer Part STPS3045DJFY-TR
Manufacturer STMicroelectronics
Description DIODE SCHOTTKY 45V 30A POWERFLAT
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io):30A
Voltage - Forward (Vf) (Max) @ If:680 mV @ 30 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:300 µA @ 45 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount, Wettable Flank
Package / Case:8-PowerVDFN
Supplier Device Package:PowerFlat™ (5x6)
Operating Temperature - Junction:-40°C ~ 175°C
