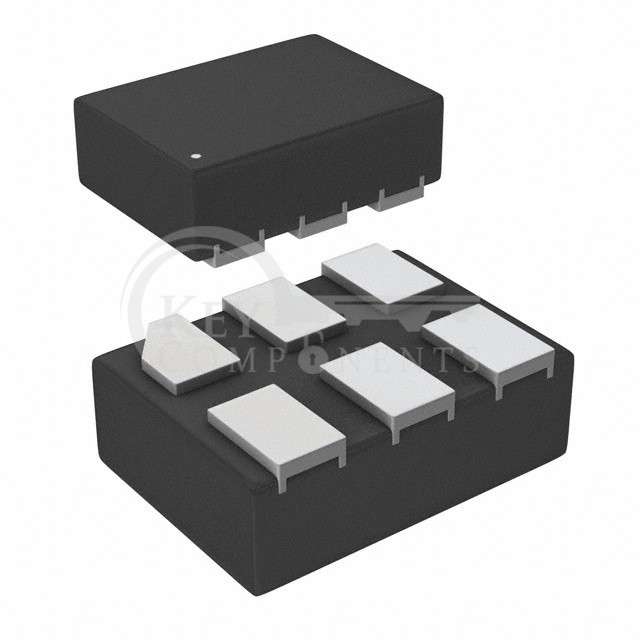

STG3155DTR
| Manufacturer Part | STG3155DTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH SPDT 6DFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 600mOhm |
| Channel-to-Channel Matching (ΔRon): | 21mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 55ns, 30ns |
| -3db Bandwidth: | 70MHz |
| Charge Injection: | 53pC |
| Channel Capacitance (CS(off), CD(off)): | 6.6pF |
| Current - Leakage (IS(off)) (Max): | 20nA |
| Crosstalk: | -72dB @ 100kHz |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-UFDFN |
| Supplier Device Package: | 6-DFN (1.45x1) |
