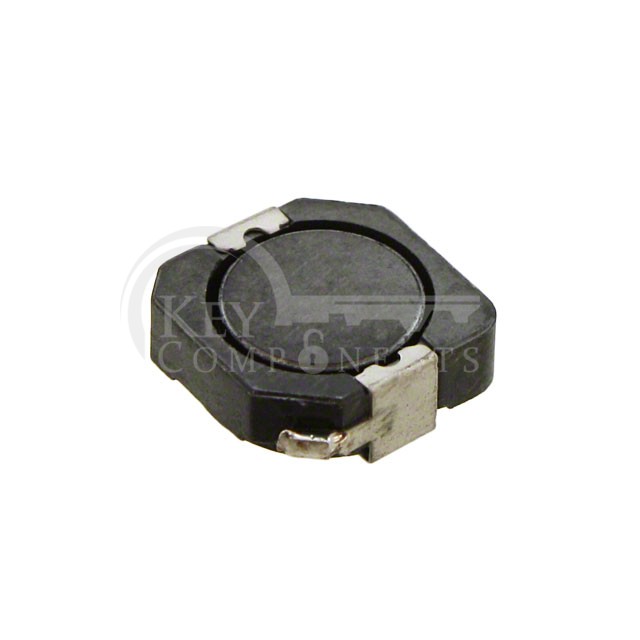

PF0560.104NLT
| Manufacturer Part | PF0560.104NLT |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Description | FIXED IND 100UH 1.25A 304MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 100 µH |
| Tolerance: | ±25% |
| Current Rating (Amps): | 1.25 A |
| Current - Saturation (Isat): | 1.35A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 304mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 6.6MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Height - Seated (Max): | 0.157" (4.00mm) |
