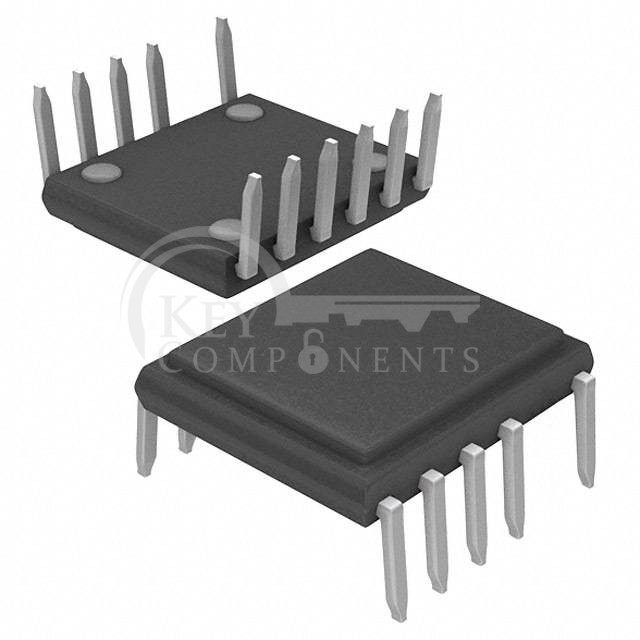

LNK6774V

Manufacturer Part	LNK6774V
Manufacturer	Power Integrations
Description	IC OFFLINE SWITCH FLYBACK 12EDIP
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	725V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	64%
Frequency - Switching:	120kHz ~ 136kHz
Power (Watts):	28 W
Fault Protection:	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad
Supplier Device Package:	eDIP-12
Mounting Type:	Through Hole
