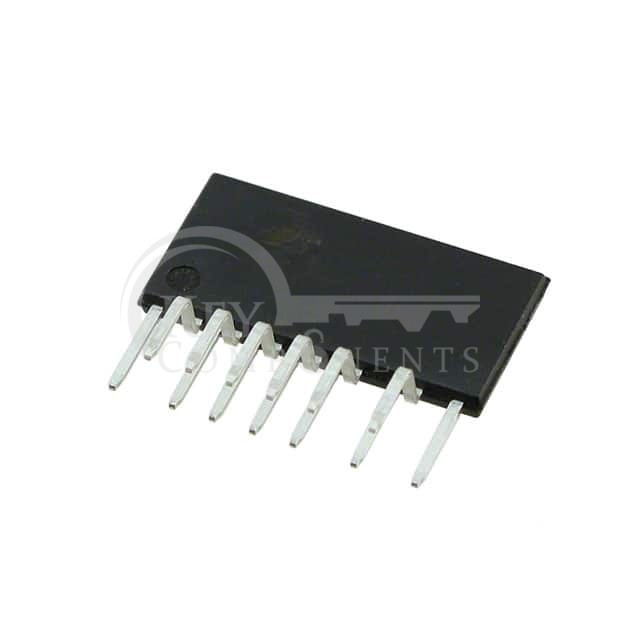

LCS705HG
| Manufacturer Part | LCS705HG |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC LLC CTRL MFET 350W ESIP16C |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Half Bridge |
| Applications: | General Purpose |
| Interface: | On/Off |
| Load Type: | Inductive |
| Technology: | Power MOSFET |
| Rds On (Typ): | 400mOhm |
| Current - Output / Channel: | - |
| Current - Peak Output: | 19.3A |
| Voltage - Supply: | 11.4V ~ 15V |
| Voltage - Load: | 11.4V ~ 15V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Features: | Auto Restart, Slew Rate Controlled |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type: | Through Hole |
| Package / Case: | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package: | eSIP-16J |
