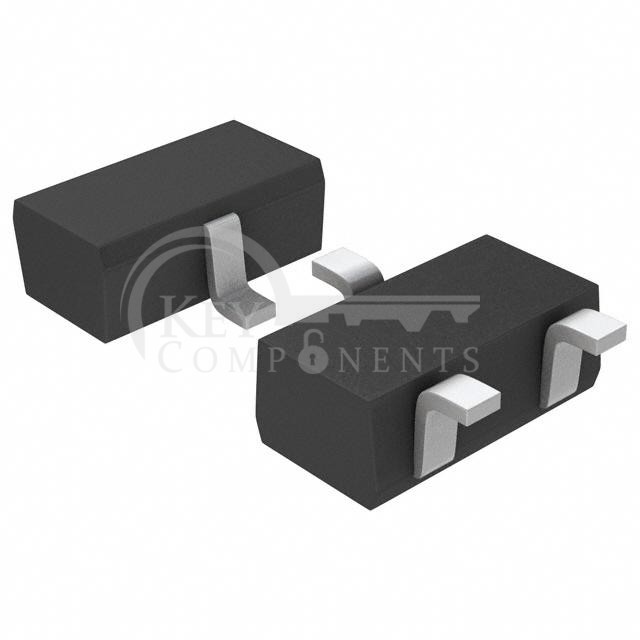

UNR32A000L

UNR32A000L

Manufacturer Part UNR32A000L
Manufacturer Panasonic Electronic Components
Description TRANS PREBIAS NPN 100MW SSSMINI3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Transistor Type:NPN - Pre-Biased
Current - Collector (Ic) (Max):80 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Resistor - Base (R1):47 kOhms
Resistor - Emitter Base (R2):-
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 300µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:150 MHz
Power - Max:100 mW
Mounting Type:Surface Mount
Package / Case:SOT-723
Supplier Device Package:SSSMini3-F1
