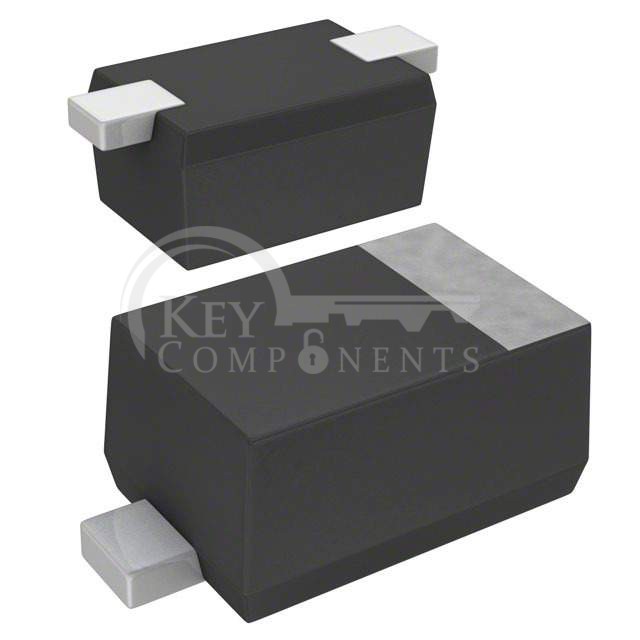

DZ2S330M0L
| Manufacturer Part | DZ2S330M0L |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | DIODE ZENER 33V 150MW SSMINI2 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Voltage - Zener (Nom) (Vz): | 33 V |
| Tolerance: | ±2.5% |
| Power - Max: | 150 mW |
| Impedance (Max) (Zzt): | 200 Ohms |
| Current - Reverse Leakage @ Vr: | 50 nA @ 25 V |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 10 mA |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-79, SOD-523 |
| Supplier Device Package: | SSMini2-F5-B |
