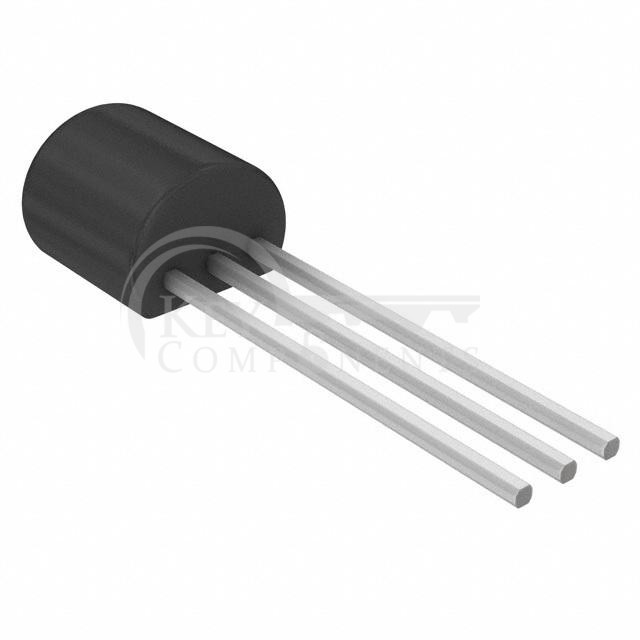

DN6849SE
| Manufacturer Part | DN6849SE |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | MAGNETIC SWITCH BIPOLAR 3SSIP |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Bipolar Switch |
| Technology: | Hall Effect |
| Polarization: | North Pole |
| Sensing Range: | -17mT Trip, 17.5mT Release |
| Test Condition: | 25°C |
| Voltage - Supply: | 4.5V ~ 16V |
| Current - Supply (Max): | 6mA |
| Current - Output (Max): | 10µA |
| Output Type: | Open Collector |
| Features: | Temperature Compensated |
| Operating Temperature: | -40°C ~ 100°C (TA) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 3-SSIP |
| Package / Case: | TO-226-3, TO-92-3 (TO-226AA) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
