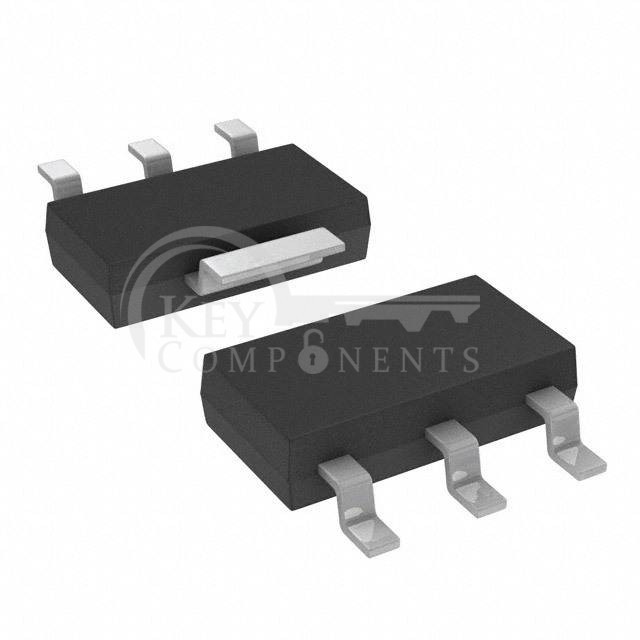

PZT3906T1G

PZT3906T1G

Manufacturer Part PZT3906T1G
Manufacturer onsemi
Description TRANS PNP 40V 0.2A SOT223
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Last Time Buy
Transistor Type:PNP
Current - Collector (Ic) (Max):200 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 50mA
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 10mA, 1V
Power - Max:1.5 W
Frequency - Transition:250MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223 (TO-261)
