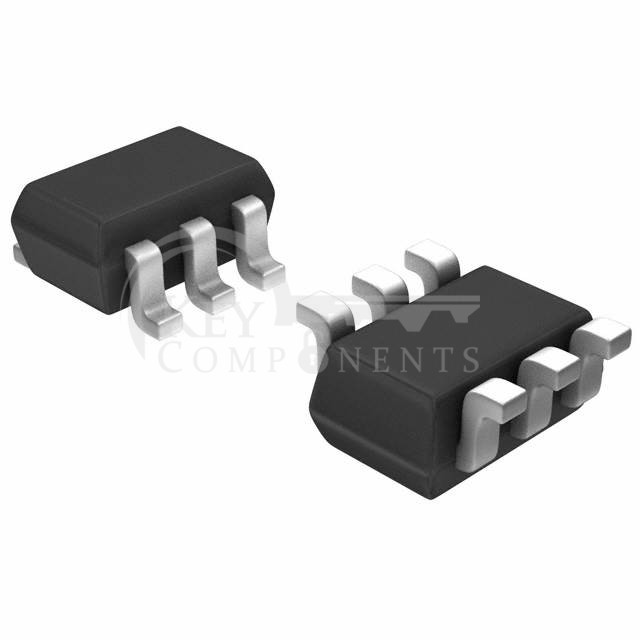

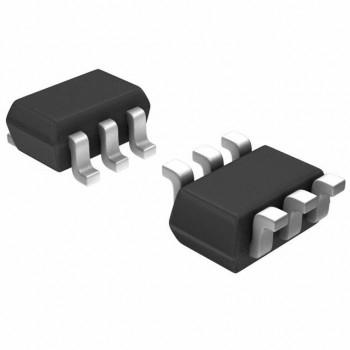

PACDN045YB6R
| Manufacturer Part | PACDN045YB6R |
|---|---|
| Manufacturer | onsemi |
| Description | TVS DIODE 5.5VWM 8VC SC70-6 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | 5 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5.5V |
| Voltage - Breakdown (Min): | 6.2V |
| Voltage - Clamping (Max) @ Ipp: | 8V |
| Current - Peak Pulse (10/1000µs): | - |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package: | SC-70-6 |
