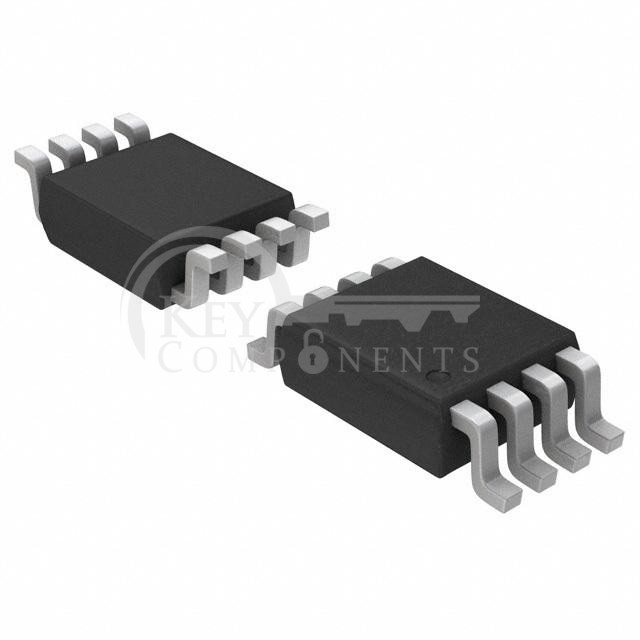

NL7WB66US
| Manufacturer Part | NL7WB66US |
|---|---|
| Manufacturer | onsemi |
| Description | IC SWITCH DUAL SPST US8 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPST - NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 10Ohm |
| Channel-to-Channel Matching (ΔRon): | 15Ohm |
| Voltage - Supply, Single (V+): | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 3.9ns, 6.3ns |
| -3db Bandwidth: | 186MHz |
| Charge Injection: | 7.5pC |
| Channel Capacitance (CS(off), CD(off)): | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | - |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package: | US8 |
