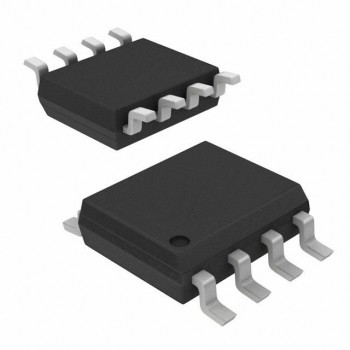

NCV47701DAJR2G
| Manufacturer Part | NCV47701DAJR2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC REG LIN POS ADJ 350MA 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Last Time Buy |
| Output Configuration: | Positive |
| Output Type: | Adjustable |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 40V |
| Voltage - Output (Min/Fixed): | 5V |
| Voltage - Output (Max): | 20V |
| Voltage Dropout (Max): | 0.5V @ 150mA |
| Current - Output: | 350mA |
| Current - Quiescent (Iq): | 230 µA |
| Current - Supply (Max): | 50 mA |
| PSRR: | 70dB (100Hz) |
| Control Features: | Enable |
| Protection Features: | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature: | -40°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
