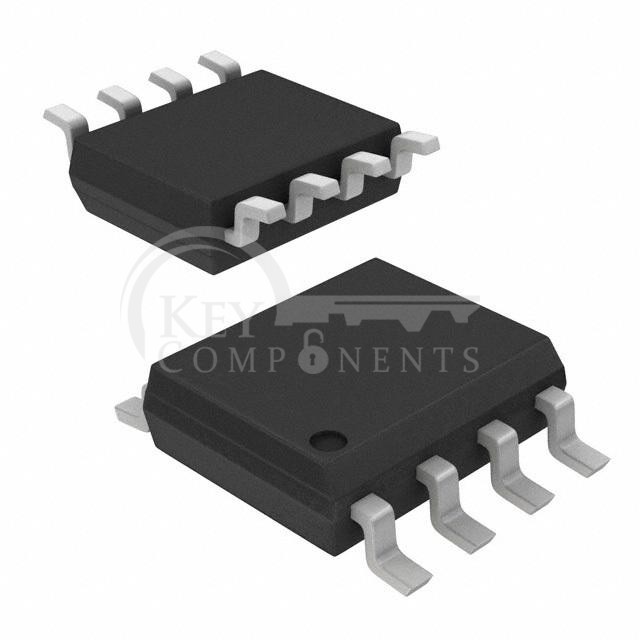

NCS2563DR2G
| Manufacturer Part | NCS2563DR2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC AMP FILTER 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Applications: | Filter |
| Output Type: | - |
| Number of Circuits: | 3 |
| -3db Bandwidth: | 33 MHz |
| Slew Rate: | - |
| Current - Supply: | 22 mA |
| Current - Output / Channel: | 50 mA |
| Voltage - Supply, Single/Dual (±): | 4.75V ~ 5.25V |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
