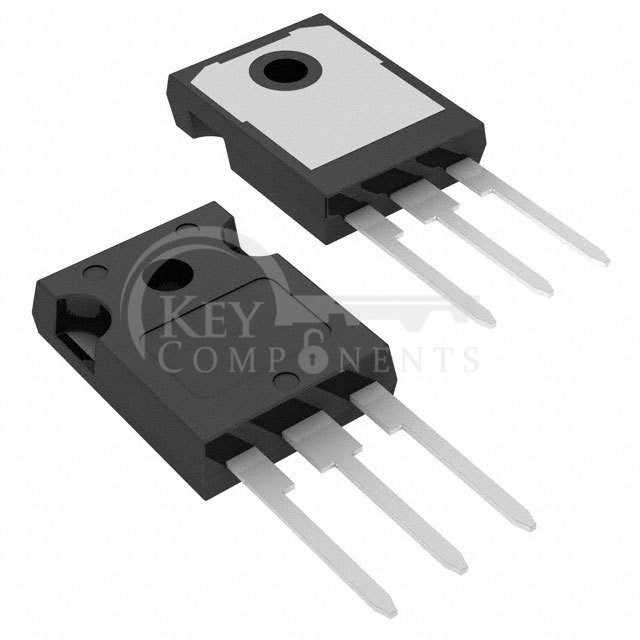

MBR7030WTG

MBR7030WTG

Manufacturer Part MBR7030WTG
Manufacturer onsemi
Description DIODE ARRAY SCHOTTKY 30V TO247
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):35A
Voltage - Forward (Vf) (Max) @ If:550 mV @ 35 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:5 mA @ 30 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
