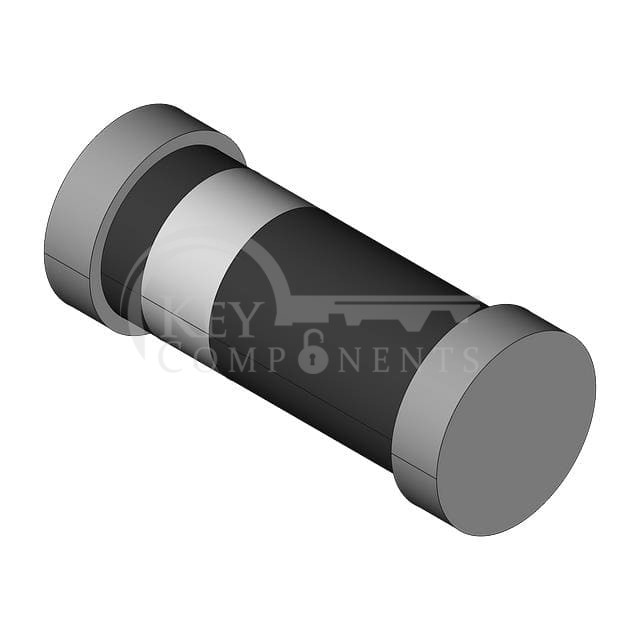

LL4148

LL4148

Manufacturer Part LL4148
Manufacturer onsemi
Description DIODE GEN PURP 100V 200MA SOD80
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):200mA
Voltage - Forward (Vf) (Max) @ If:1 V @ 10 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):4 ns
Current - Reverse Leakage @ Vr:25 nA @ 20 V
Capacitance @ Vr, F:4pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-213AC, MINI-MELF, SOD-80
Supplier Device Package:SOD-80
Operating Temperature - Junction:-55°C ~ 175°C
