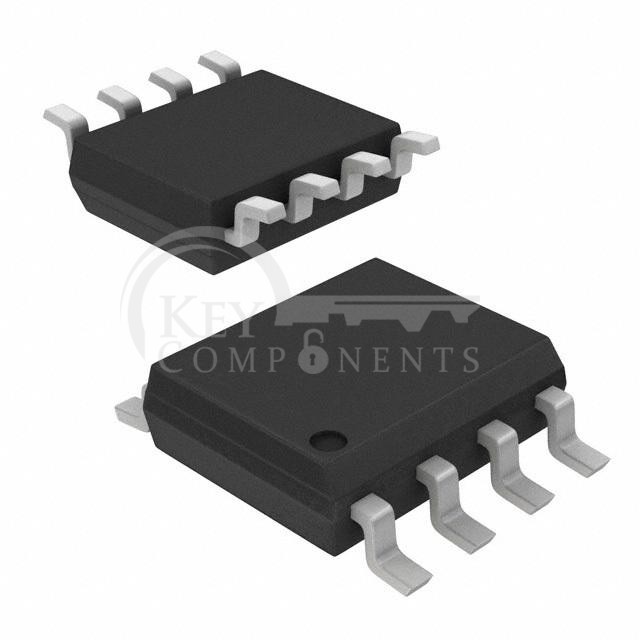

HCPL0638R2

HCPL0638R2

Manufacturer Part HCPL0638R2
Manufacturer onsemi
Description OPTOISO 3.75KV 2CH OPEN COLL 8SO
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):10kV/µs
Input Type:DC
Output Type:Open Collector, Schottky Clamped
Current - Output / Channel:15 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):17ns, 5ns
Voltage - Forward (Vf) (Typ):1.75V (Max)
Current - DC Forward (If) (Max):-
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
