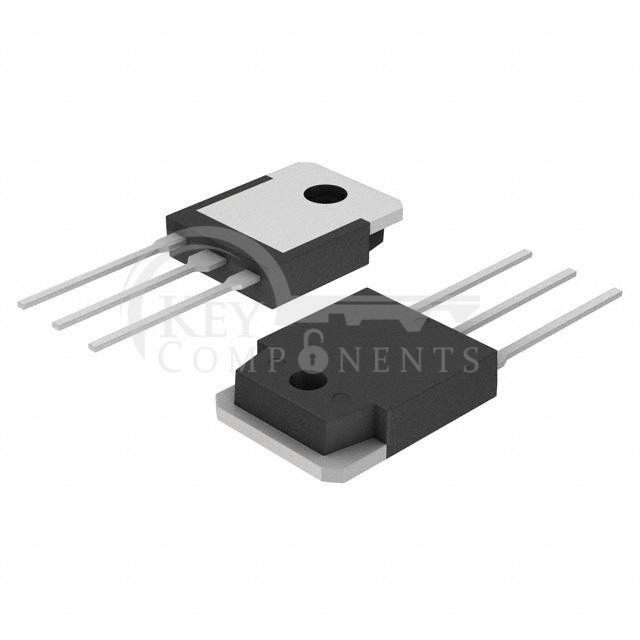

FQA65N20

Manufacturer Part	FQA65N20
Manufacturer	onsemi
Description	MOSFET N-CH 200V 65A TO3PN
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Last Time Buy
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	65A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	32mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	200 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	7900 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	310W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-3PN
Package / Case:	TO-3P-3, SC-65-3
