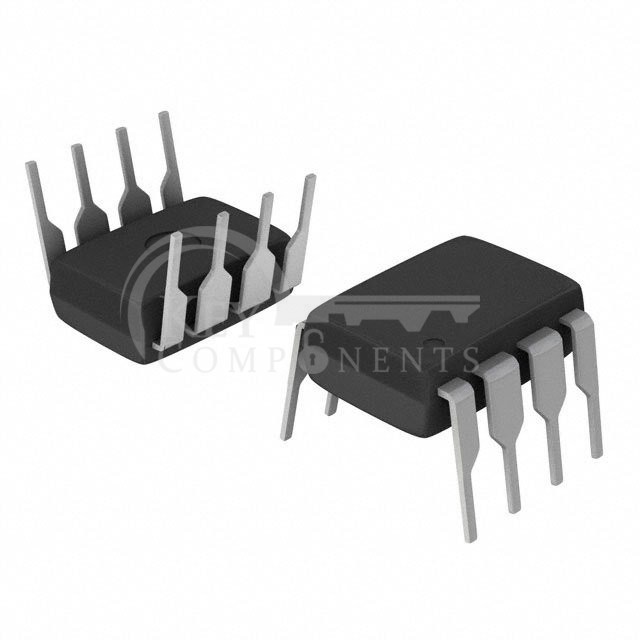

FOD2741BTV

FOD2741BTV

Manufacturer Part FOD2741BTV
Manufacturer onsemi
Description OPTOISOLATOR 5KV TRANSISTOR 8DIP
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):200% @ 10mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):30V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):-
Vce Saturation (Max):400mV
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-MDIP
