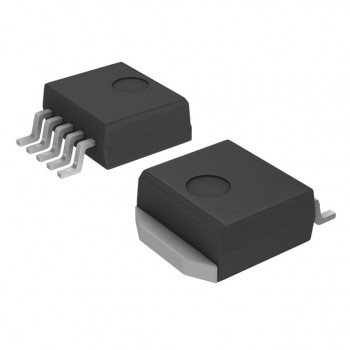

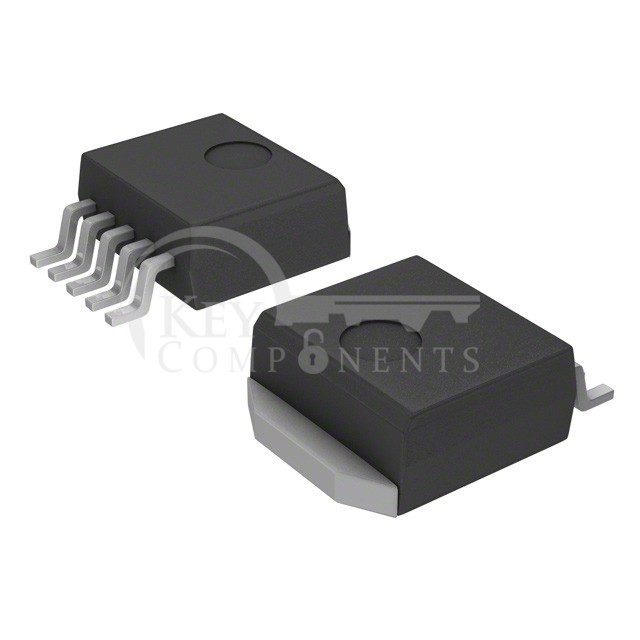

Manufacturer Part | CS5253-1GDP5 |
---|---|
Manufacturer | onsemi |
Description | IC REG LINEAR POS ADJ 3A D2PAK-5 |
Category | Integrated Circuits (ICs) |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Obsolete |
Output Configuration: | Positive |
Output Type: | Adjustable |
Number of Regulators: | 1 |
Voltage - Input (Max): | 13V |
Voltage - Output (Min/Fixed): | 1.25V |
Voltage - Output (Max): | 5V |
Voltage Dropout (Max): | 1.3V @ 3A |
Current - Output: | 3A |
Current - Quiescent (Iq): | 10 mA |
Current - Supply (Max): | - |
PSRR: | 80dB (120Hz) |
Control Features: | - |
Protection Features: | Over Current, Over Temperature, Short Circuit |
Operating Temperature: | 0°C ~ 70°C |
Mounting Type: | Surface Mount |
Package / Case: | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
Supplier Device Package: | D2PAK-5 |
