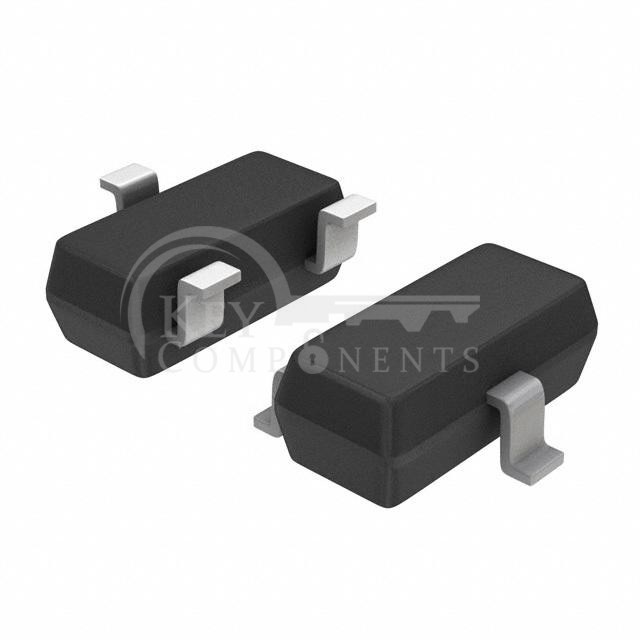

BSS138LT3G

Manufacturer Part	BSS138LT3G
Manufacturer	onsemi
Description	MOSFET N-CH 50V 200MA SOT23-3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	50 V
Current - Continuous Drain (Id) @ 25°C:	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V
Rds On (Max) @ Id, Vgs:	3.5Ohm @ 200mA, 5V
Vgs(th) (Max) @ Id:	1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	50 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	225mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-3 (TO-236)
Package / Case:	TO-236-3, SC-59, SOT-23-3
