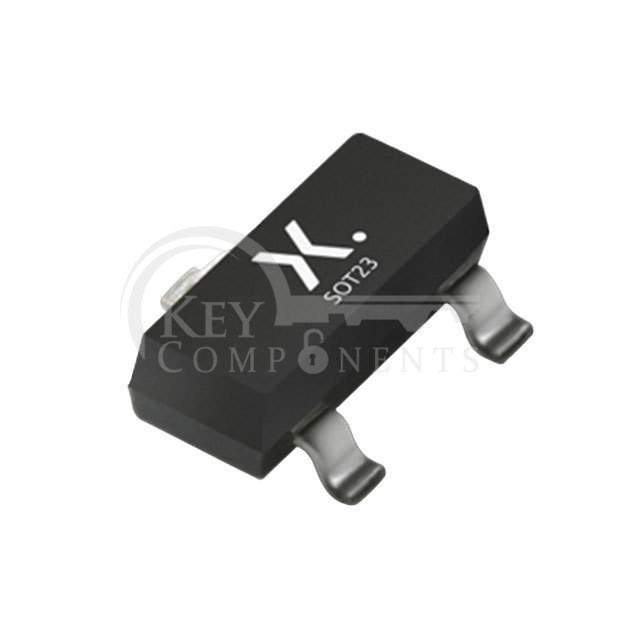

PMV250EPEAR

Manufacturer Part	PMV250EPEAR
Manufacturer	Nexperia USA Inc.
Description	MOSFET P-CH 40V 1.5A TO236AB
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	240mOhm @ 1.3A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	450 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	480mW (Ta), 6.25W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-236AB
Package / Case:	TO-236-3, SC-59, SOT-23-3
