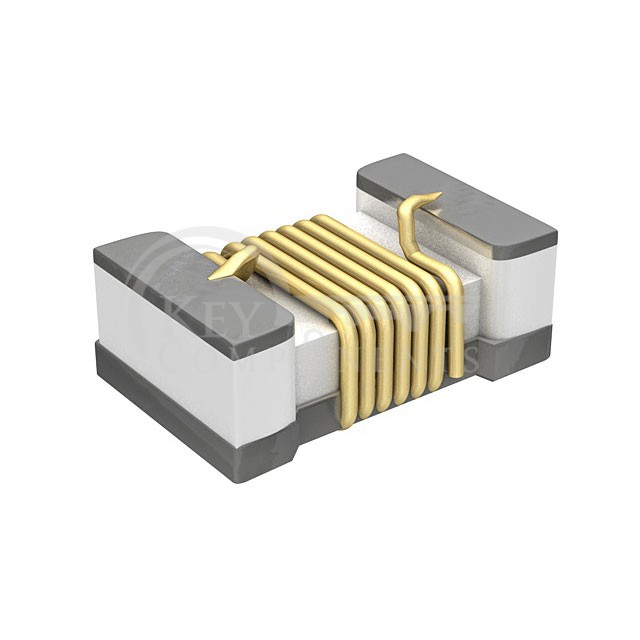

LQW04AN13NH00D
| Manufacturer Part | LQW04AN13NH00D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 13NH 280MA 340MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 13 nH |
| Tolerance: | ±3% |
| Current Rating (Amps): | 280 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 340mOhm Max |
| Q @ Freq: | 15 @ 250MHz |
| Frequency - Self Resonant: | 6GHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0302 (0804 Metric) |
| Supplier Device Package: | 03015 (0804 Metric) |
| Size / Dimension: | 0.031" L x 0.016" W (0.80mm x 0.40mm) |
| Height - Seated (Max): | 0.018" (0.45mm) |
