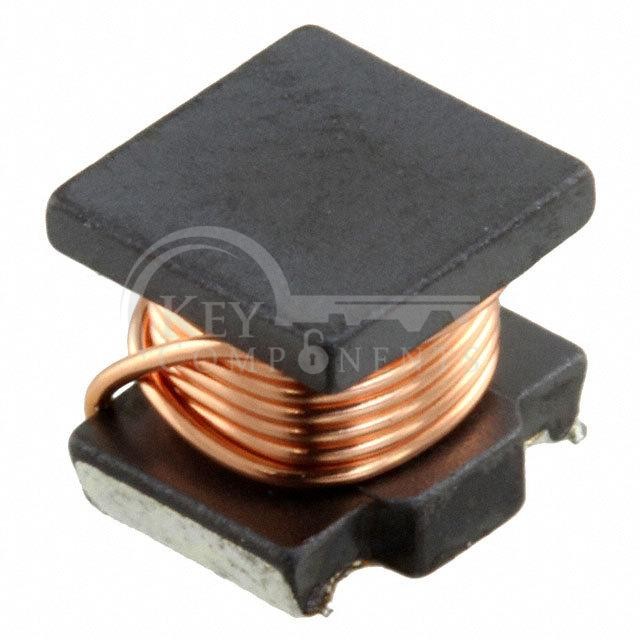

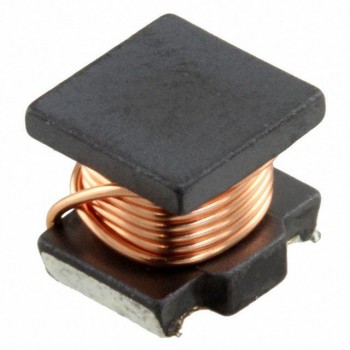

LQH55DN221M03L
| Manufacturer Part | LQH55DN221M03L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 220UH 320MA 3.36OHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 220 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 320 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 3.36Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 4MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2220 (5750 Metric) |
| Supplier Device Package: | 2220 (5650 Metric) |
| Size / Dimension: | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
