2034560003
| Manufacturer Part | 2034560003 |
|---|---|
| Manufacturer | Molex |

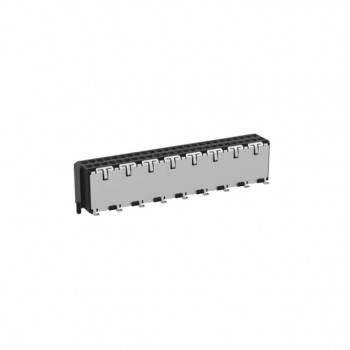

| Description | CONN SELF-MATE 699POS SMD GOLD |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Connector Type: | Self Mating, Non-Gendered, Hermaphroditic |
| Number of Positions: | 699 |
| Pitch: | - |
| Number of Rows: | 11 |
| Mounting Type: | Surface Mount |
| Features: | Pick and Place |
| Contact Finish: | Gold |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Mated Stacking Heights: | 8mm, 11mm |
| Height Above Board: | 0.301" (7.65mm) |
