Manufacturer Part 0555600168
Manufacturer Molex

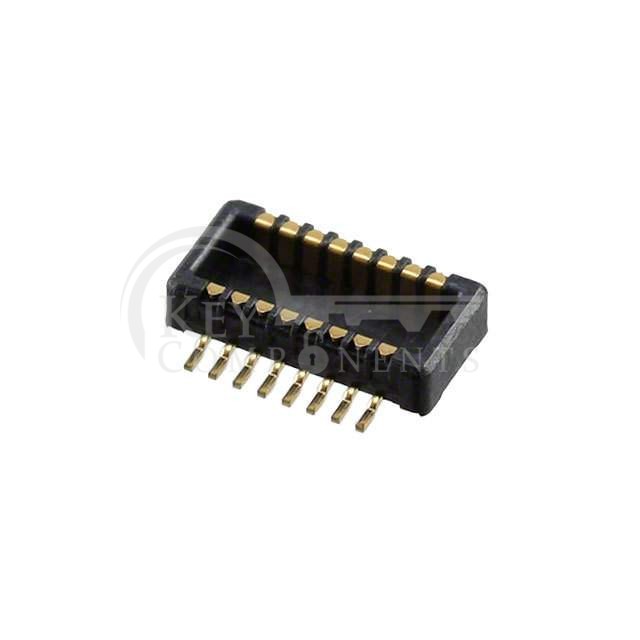

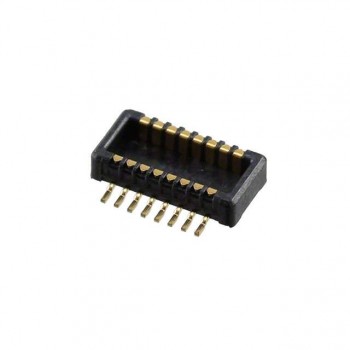

Description CONN PLUG 16POS SMD GOLD
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Connector Type:Plug, Outer Shroud Contacts
Number of Positions:16
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:-
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:1.5mm
Height Above Board:0.045" (1.14mm)
