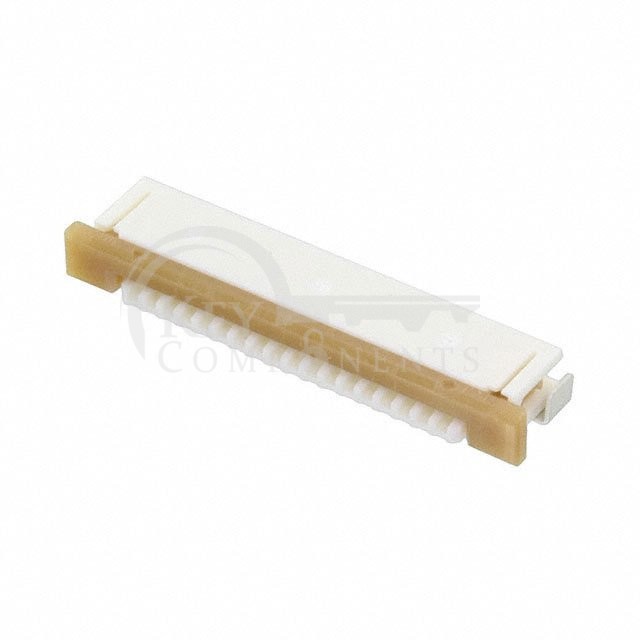

0522711879
| Manufacturer Part | 0522711879 |
|---|---|
| Manufacturer | Molex |
| Description | CONN FPC BOTTOM 18POS 1.00MM R/A |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Bottom |
| Number of Positions: | 18 |
| Pitch: | 0.039" (1.00mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm |
| Height Above Board: | 0.118" (3.00mm) |
| Locking Feature: | Slide Lock |
| Cable End Type: | Tapered |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Tin Bismuth |
| Housing Material: | Polyamide (PA46), Nylon 4/6 |
| Actuator Material: | Polyphenylene Sulfide (PPS) |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating: | 50V |
| Operating Temperature: | -40°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
