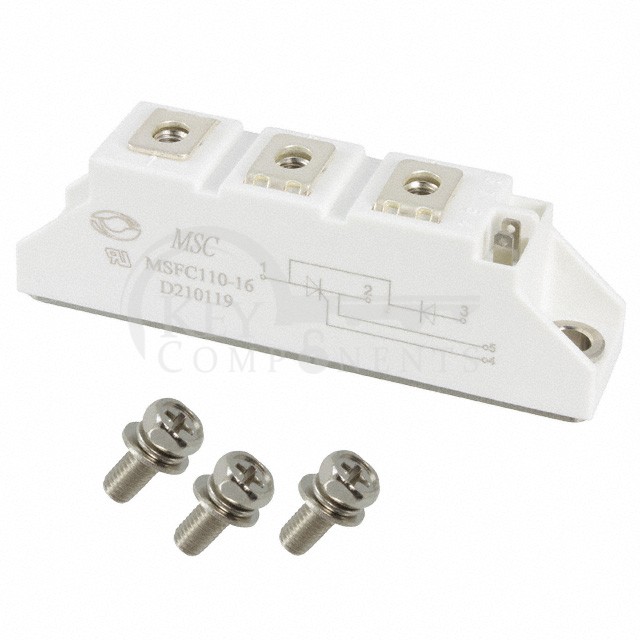

MSFC110-16
| Manufacturer Part | MSFC110-16 |
|---|---|
| Manufacturer | Microsemi Corporation |
| Description | POWER MOD THYRISTOR/DIODE F1 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Structure: | Series Connection - SCR/Diode |
| Number of SCRs, Diodes: | 1 SCR, 1 Diode |
| Voltage - Off State: | 1.6 kV |
| Current - On State (It (AV)) (Max): | 110 A |
| Current - On State (It (RMS)) (Max): | - |
| Voltage - Gate Trigger (Vgt) (Max): | 3 V |
| Current - Gate Trigger (Igt) (Max): | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 2250A @ 50Hz |
| Current - Hold (Ih) (Max): | 250 mA |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Screw Mount |
| Package / Case: | Module |
