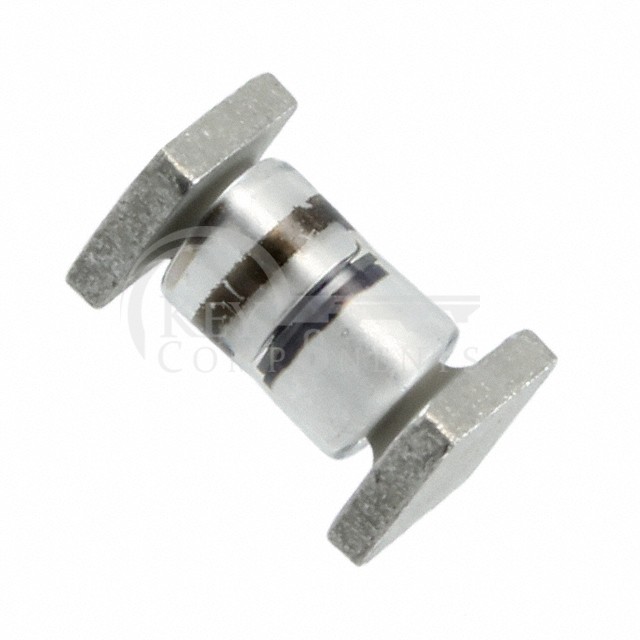

JANTX1N4486US
| Manufacturer Part | JANTX1N4486US |
|---|---|
| Manufacturer | Microchip Technology |
| Description | DIODE ZENER 75V 1.5W D5A |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 75 V |
| Tolerance: | ±5% |
| Power - Max: | 1.5 W |
| Impedance (Max) (Zzt): | 130 Ohms |
| Current - Reverse Leakage @ Vr: | 250 nA @ 60 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.5 V @ 1 A |
| Operating Temperature: | -65°C ~ 175°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SQ-MELF, A |
| Supplier Device Package: | D-5A |
