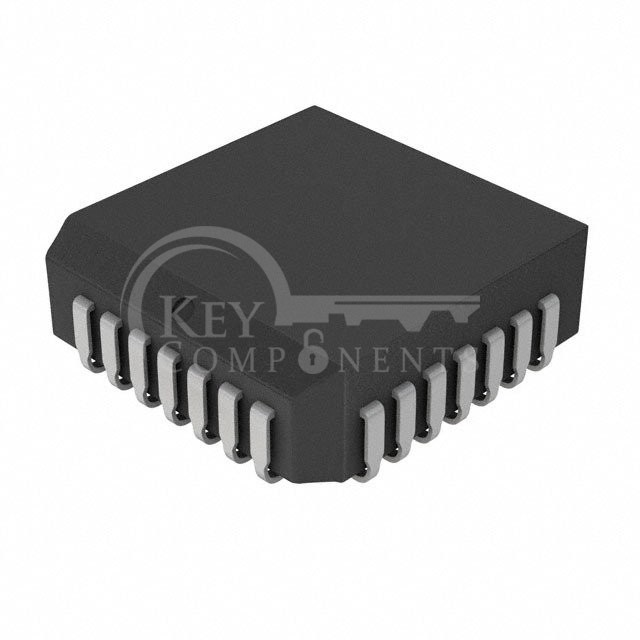

HV20220PJ-G
| Manufacturer Part | HV20220PJ-G |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC ULTRASOUND SWITCH 1:1 28PLCC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Applications: | Ultrasound |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Switch Circuit: | SPST |
| Number of Channels: | 8 |
| On-State Resistance (Max): | 38Ohm |
| Voltage - Supply, Single (V+): | 40V ~ 200V |
| Voltage - Supply, Dual (V±): | ±40V ~ 160V |
| -3db Bandwidth: | 50MHz |
| Features: | - |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-LCC (J-Lead) |
| Supplier Device Package: | 28-PLCC (11.5x11.5) |
