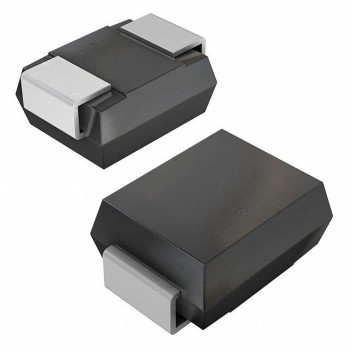

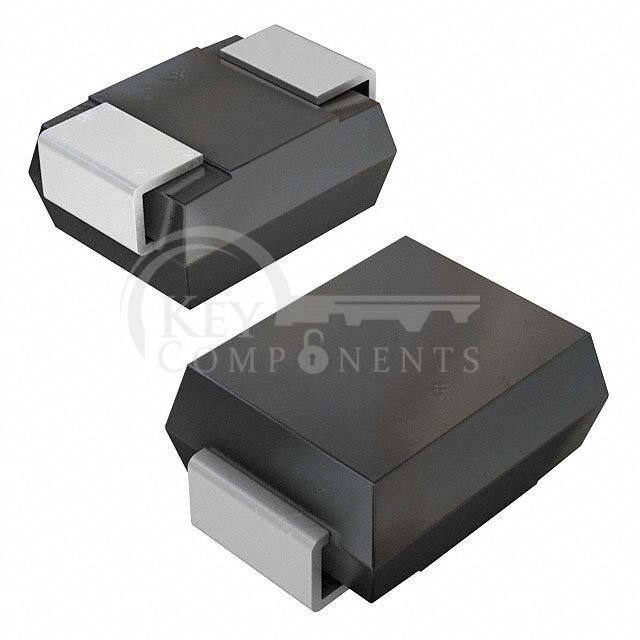

TPSMB56CA

TPSMB56CA

Manufacturer Part TPSMB56CA
Manufacturer Littelfuse Inc.
Description TVS DIODE 47.8VWM 77VC DO214AA
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):47.8V
Voltage - Breakdown (Min):53.2V
Voltage - Clamping (Max) @ Ipp:77V
Current - Peak Pulse (10/1000µs):7.9A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:DO-214AA (SMBJ)
