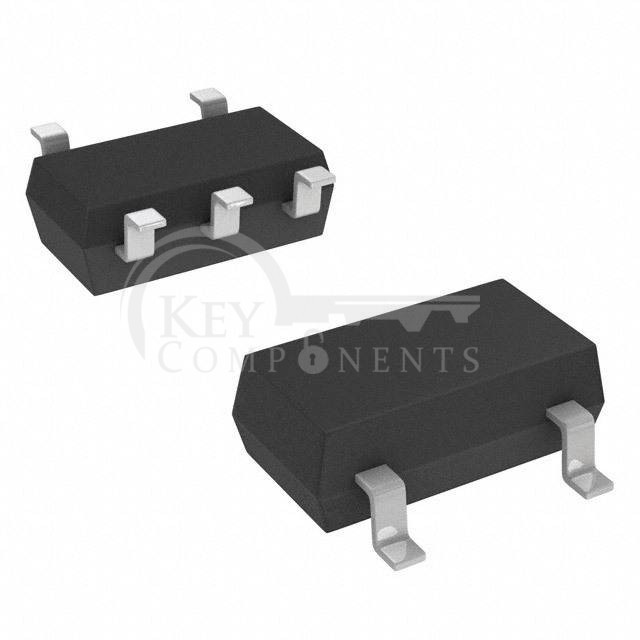

SP0504BAJT
| Manufacturer Part | SP0504BAJT |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | TVS DIODE 5.5VWM 8.5VC SC70-5 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
| Voltage - Breakdown (Min): | - |
| Voltage - Clamping (Max) @ Ipp: | 8.5V |
| Current - Peak Pulse (10/1000µs): | - |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package: | SC-70-5 |
