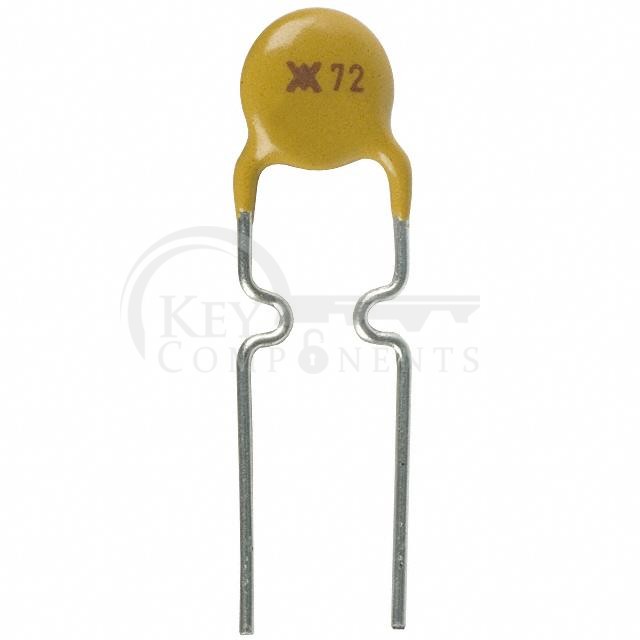

RXEF030-AP
| Manufacturer Part | RXEF030-AP |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 72V 300MA RADIAL |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Polymeric |
| Voltage - Max: | 72V |
| Current - Max: | 40 A |
| Current - Hold (Ih) (Max): | 300 mA |
| Current - Trip (It): | 600 mA |
| Time to Trip: | 3 s |
| Resistance - Initial (Ri) (Min): | 880 mOhms |
| Resistance - Post Trip (R1) (Max): | 2.1 Ohms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Disc |
| Size / Dimension: | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max): | 0.500" (12.70mm) |
| Thickness (Max): | - |
| Lead Spacing: | 0.199" (5.05mm) |
