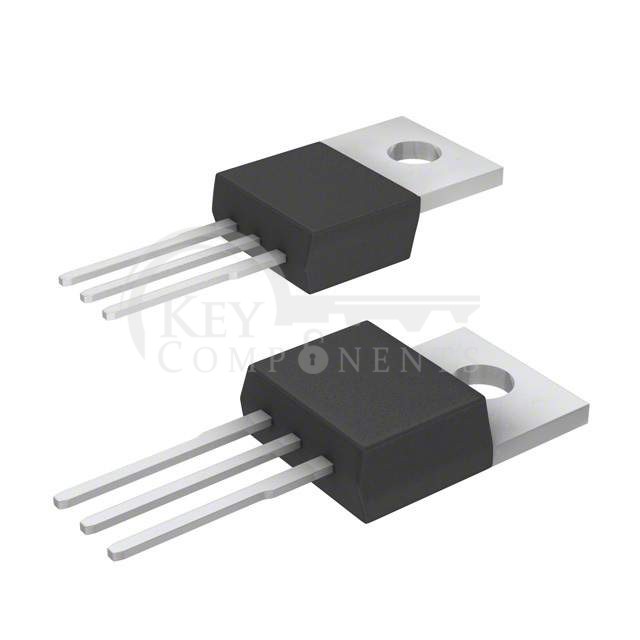

BTA16-800SW3G
| Manufacturer Part | BTA16-800SW3G |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | TRIAC SENS GATE 800V 16A TO220AB |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Triac Type: | Logic - Sensitive Gate |
| Voltage - Off State: | 800 V |
| Current - On State (It (RMS)) (Max): | 16 A |
| Voltage - Gate Trigger (Vgt) (Max): | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 170A @ 60Hz |
| Current - Gate Trigger (Igt) (Max): | 10 mA |
| Current - Hold (Ih) (Max): | 20 mA |
| Configuration: | Single |
| Operating Temperature: | -40°C ~ 110°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | TO-220-3 |
| Supplier Device Package: | TO-220AB |
