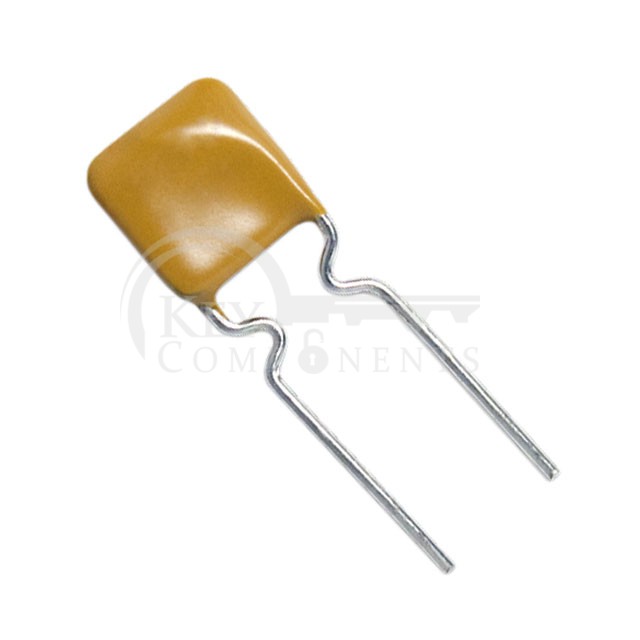

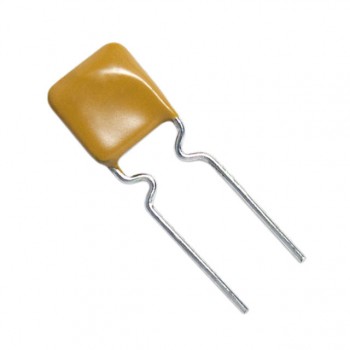

AHEF070
| Manufacturer Part | AHEF070 |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 32V 700MA RADIAL |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Polymeric |
| Voltage - Max: | 32V |
| Current - Max: | 100 A |
| Current - Hold (Ih) (Max): | 700 mA |
| Current - Trip (It): | 1.4 A |
| Time to Trip: | 3.2 s |
| Resistance - Initial (Ri) (Min): | 230 mOhms |
| Resistance - Post Trip (R1) (Max): | 800 mOhms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 125°C |
| Ratings: | AEC-Q200 |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Disc |
| Size / Dimension: | 0.272" L x 0.118" W (6.90mm x 3.00mm) |
| Height - Seated (Max): | 0.425" (10.80mm) |
| Thickness (Max): | - |
| Lead Spacing: | 0.118" (3.00mm) |
