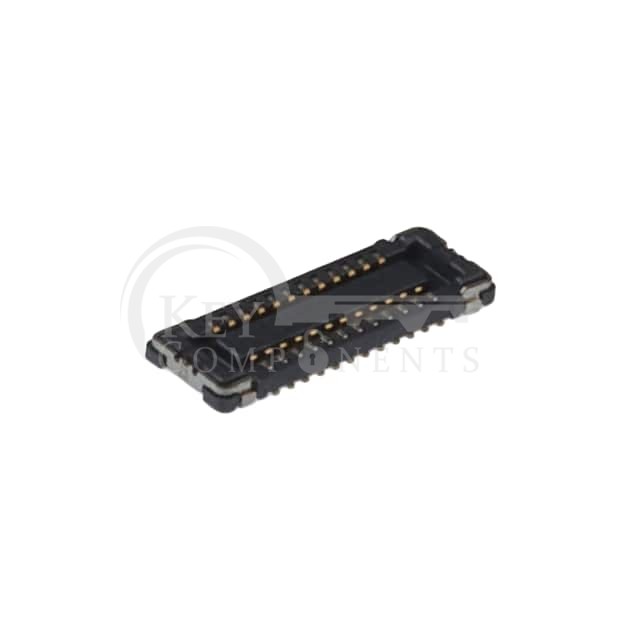

WP7A-S024VA1-R8000

WP7A-S024VA1-R8000

Manufacturer Part WP7A-S024VA1-R8000
Manufacturer JAE Electronics
Description CONN RCPT 24POS SMD GOLD
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Connector Type:Receptacle, Center Strip Contacts
Number of Positions:24
Pitch:0.016" (0.40mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Solder Retention
Contact Finish:Gold
Contact Finish Thickness:4.00µin (0.100µm)
Mated Stacking Heights:0.7mm
Height Above Board:0.028" (0.71mm)
