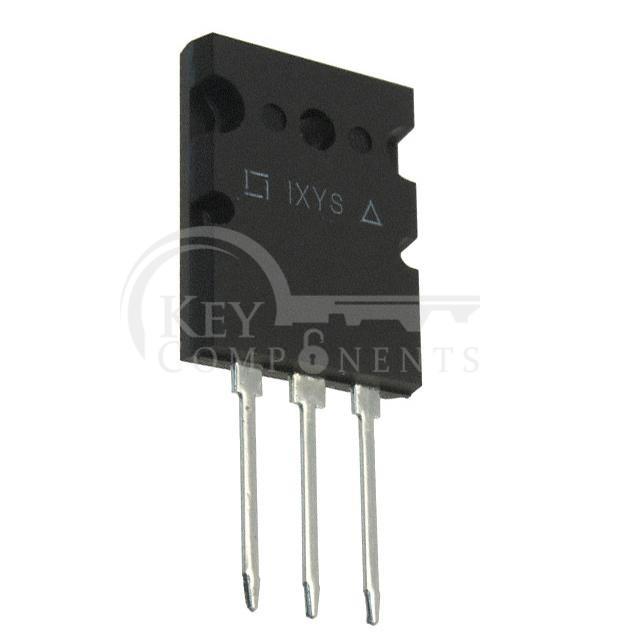

IXTK200N10L2

Manufacturer Part	IXTK200N10L2
Manufacturer	IXYS
Description	MOSFET N-CH 100V 200A TO264
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	200A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	11mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs:	540 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	23000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1040W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-264 (IXTK)
Package / Case:	TO-264-3, TO-264AA
