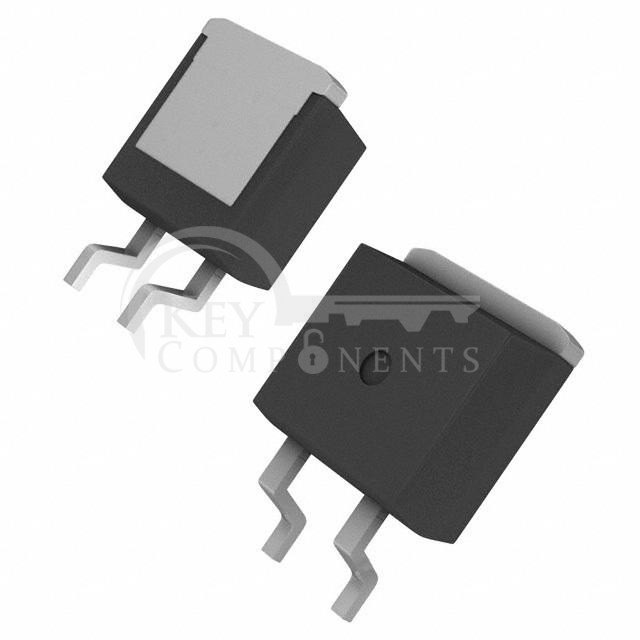

IXTA152N085T

Manufacturer Part	IXTA152N085T
Manufacturer	IXYS
Description	MOSFET N-CH 85V 152A TO263
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	85 V
Current - Continuous Drain (Id) @ 25°C:	152A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	114 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5500 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	360W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263AA
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
