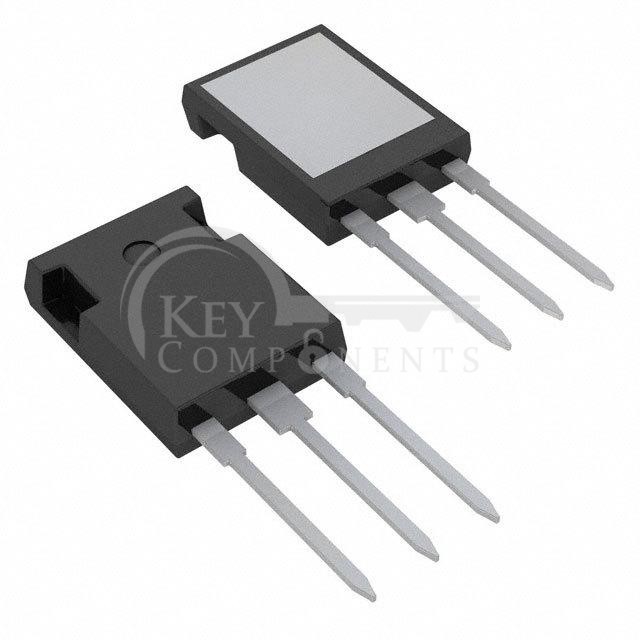

IXFR20N120P

Manufacturer Part	IXFR20N120P
Manufacturer	IXYS
Description	MOSFET N-CH 1200V 13A ISOPLUS247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	630mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	6.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	193 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	11100 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	290W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	ISOPLUS247™
Package / Case:	TO-247-3
