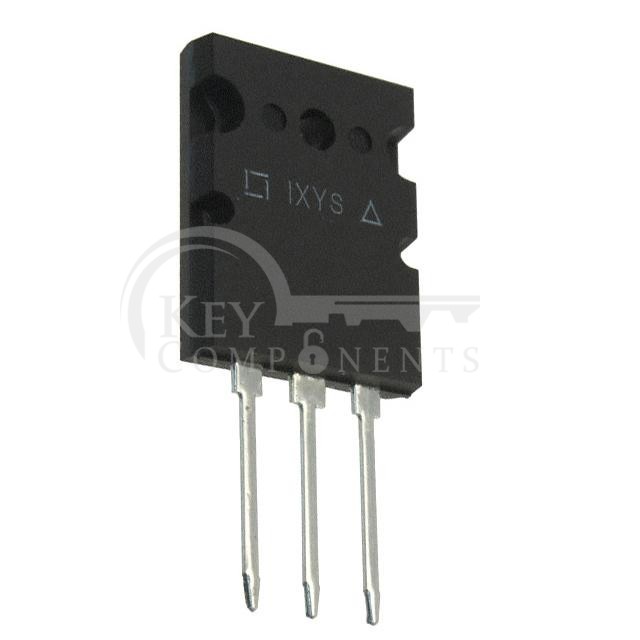

IXFK200N10P

IXFK200N10P

Manufacturer Part IXFK200N10P
Manufacturer IXYS
Description MOSFET N-CH 100V 200A TO264AA
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:200A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:7.5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:235 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:7600 pF @ 25 V
FET Feature:-
Power Dissipation (Max):830W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-264AA (IXFK)
Package / Case:TO-264-3, TO-264AA
