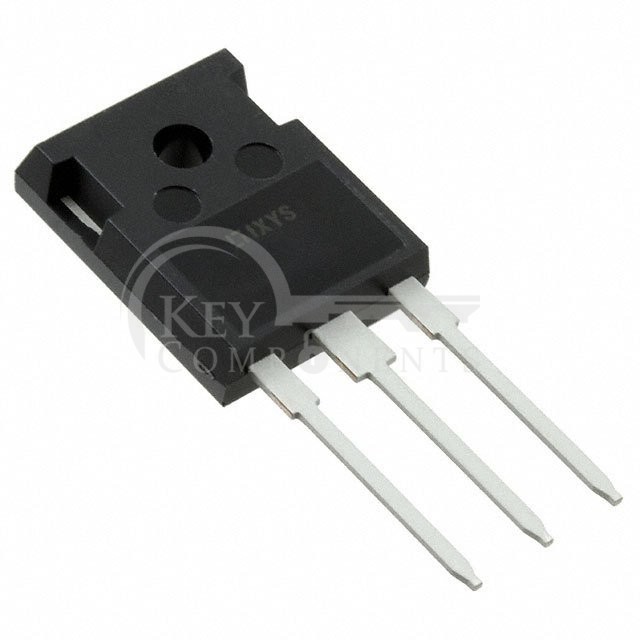

IXFH30N60Q

Manufacturer Part	IXFH30N60Q
Manufacturer	IXYS
Description	MOSFET N-CH 600V 30A TO247AD
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	230mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id:	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs:	125 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4700 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	500W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247AD (IXFH)
Package / Case:	TO-247-3
