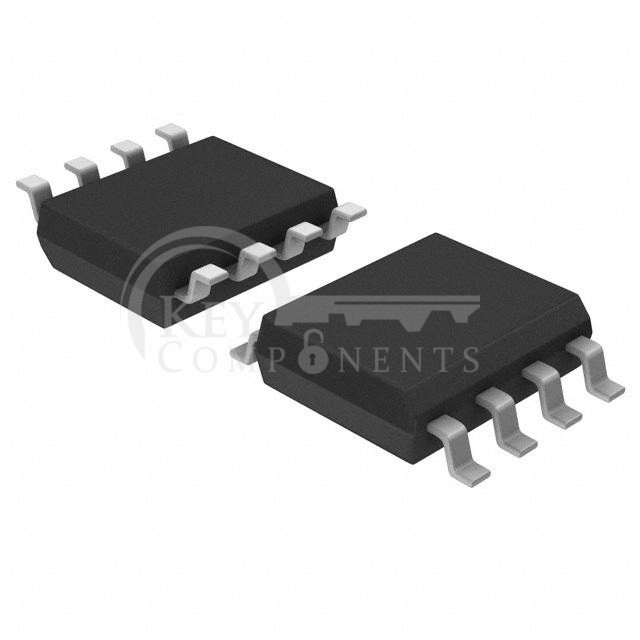

IXDI502SIAT/R
| Manufacturer Part | IXDI502SIAT/R |
|---|---|
| Manufacturer | IXYS |
| Description | IC GATE DRVR LOW-SIDE 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Driven Configuration: | Low-Side |
| Channel Type: | Independent |
| Number of Drivers: | 2 |
| Gate Type: | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH: | 0.8V, 3V |
| Current - Peak Output (Source, Sink): | 2A, 2A |
| Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | - |
| Rise / Fall Time (Typ): | 7.5ns, 6.5ns |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
