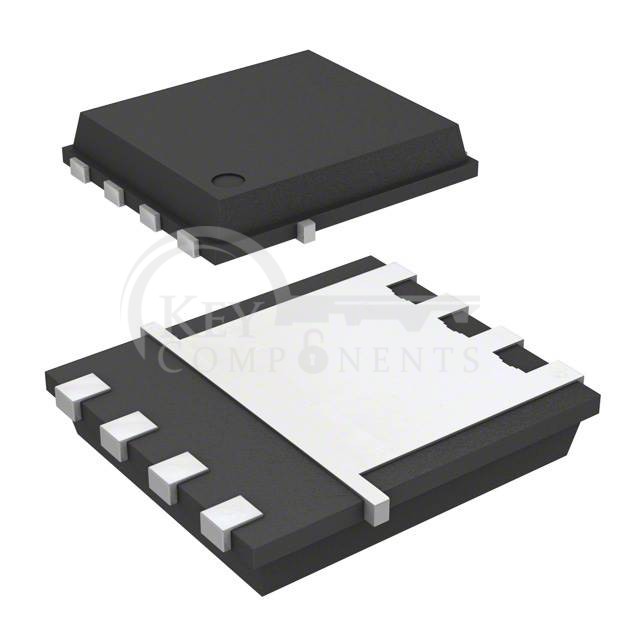

IRFH8337TRPBF

Manufacturer Part	IRFH8337TRPBF
Manufacturer	International Rectifier
Description	MOSFET N-CH 30V 12A/35A PQFN
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	12.8mOhm @ 16.2A, 10V
Vgs(th) (Max) @ Id:	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs:	10 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	790 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	3.2W (Ta), 27W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PQFN (5x6)
Package / Case:	8-PowerTDFN
