AUIRG4BC30USTRL

AUIRG4BC30USTRL

Manufacturer Part AUIRG4BC30USTRL
Manufacturer International Rectifier
Description IGBT, 23A I(C), 600V V(BR)CES, N
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):23 A
Current - Collector Pulsed (Icm):92 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 12A
Power - Max:100 W
Switching Energy:160µJ (on), 200µJ (off)
Input Type:Standard
Gate Charge:50 nC
Td (on/off) @ 25°C:17ns/78ns
Test Condition:480V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount

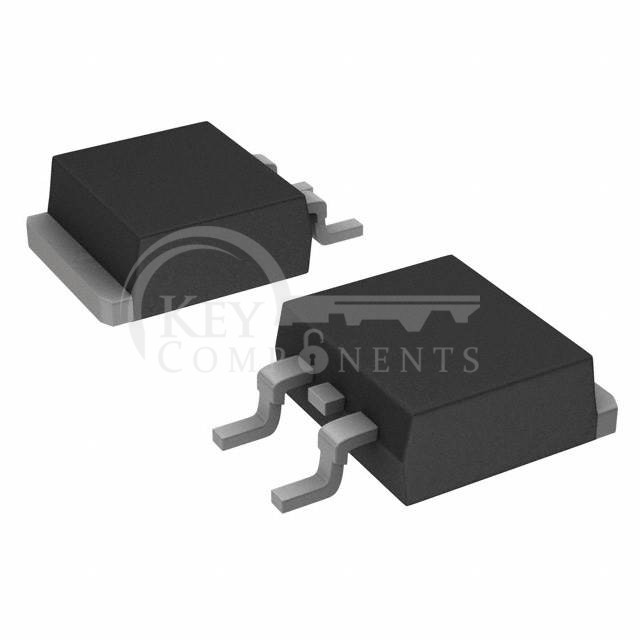

Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D2PAK
