Manufacturer Part 09031246901
Manufacturer HARTING

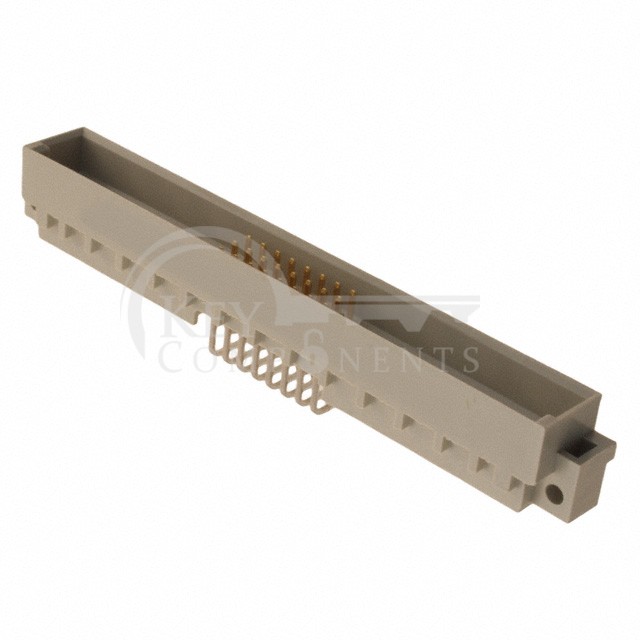

Description CONN DIN HDR 32POS PCB RA
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Connector Type:Header, Male Pins
Number of Positions:32 (24 + 8 Coax, Fiber Optic or Power)
Number of Positions Loaded:24
Pitch:0.100" (2.54mm)
Number of Rows:3
Style:M
Level, Class:2
Mounting Type:Through Hole, Right Angle
Termination:Solder
Features:-
Contact Finish:-
Contact Finish Thickness:-
