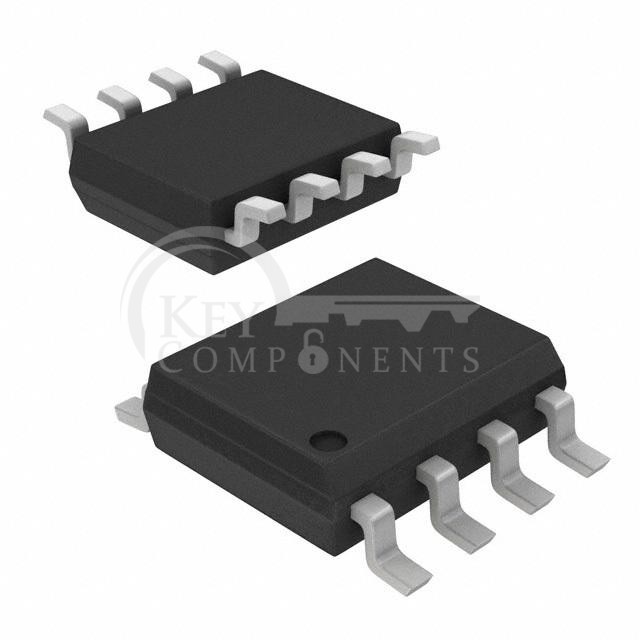

ICL7660SIBA
| Manufacturer Part | ICL7660SIBA |
|---|---|
| Manufacturer | Harris Corporation |
| Description | SWITCHED CAPACITOR CONVERTER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Ratiometric |
| Output Configuration: | Positive or Negative |
| Topology: | Charge Pump |
| Output Type: | Fixed |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 1.5V |
| Voltage - Input (Max): | 12V |
| Voltage - Output (Min/Fixed): | -Vin, 2Vin |
| Voltage - Output (Max): | - |
| Current - Output: | 45mA |
| Frequency - Switching: | 10kHz ~ 35kHz |
| Synchronous Rectifier: | No |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
