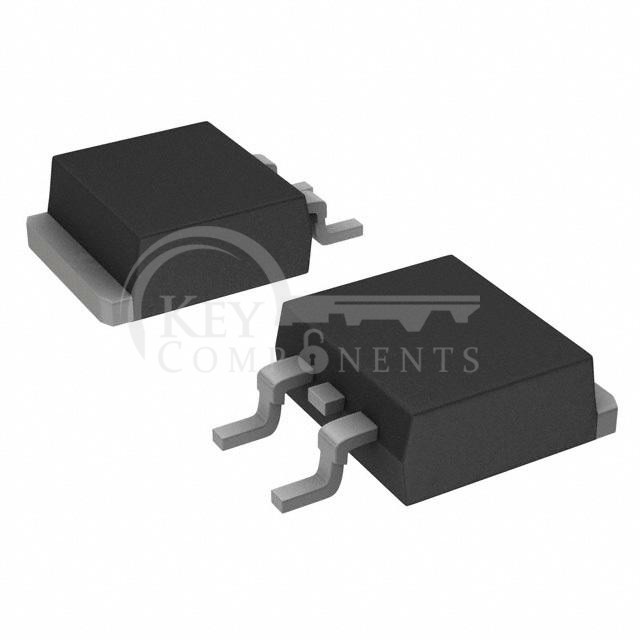

HGT1S7N60A4DS

HGT1S7N60A4DS

Manufacturer Part HGT1S7N60A4DS
Manufacturer Fairchild Semiconductor
Description N-CHANNEL IGBT
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):34 A
Current - Collector Pulsed (Icm):56 A
Vce(on) (Max) @ Vge, Ic:2.7V @ 15V, 7A
Power - Max:125 W
Switching Energy:55µJ (on), 60µJ (off)
Input Type:Standard
Gate Charge:37 nC
Td (on/off) @ 25°C:11ns/100ns
Test Condition:390V, 7A, 25Ohm, 15V
Reverse Recovery Time (trr):34 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D2PAK (TO-263)
