DM74LS169AN

DM74LS169AN

Manufacturer Part DM74LS169AN
Manufacturer Fairchild Semiconductor
Description BINARY COUNTER
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Logic Type:Binary Counter
Direction:Up, Down
Number of Elements:1
Number of Bits per Element:4
Reset:-
Timing:Synchronous
Count Rate:25 MHz
Trigger Type:Positive Edge
Voltage - Supply:4.75 V ~ 5.25 V
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole

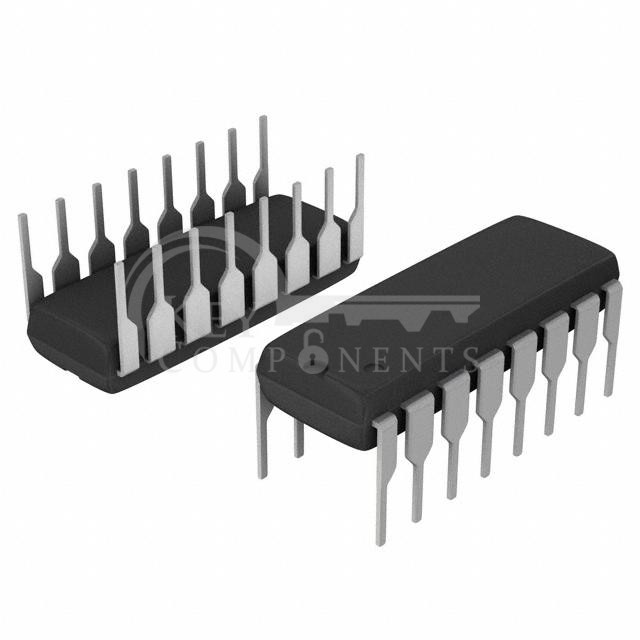

Package / Case:16-DIP (0.300", 7.62mm)
Supplier Device Package:16-PDIP
