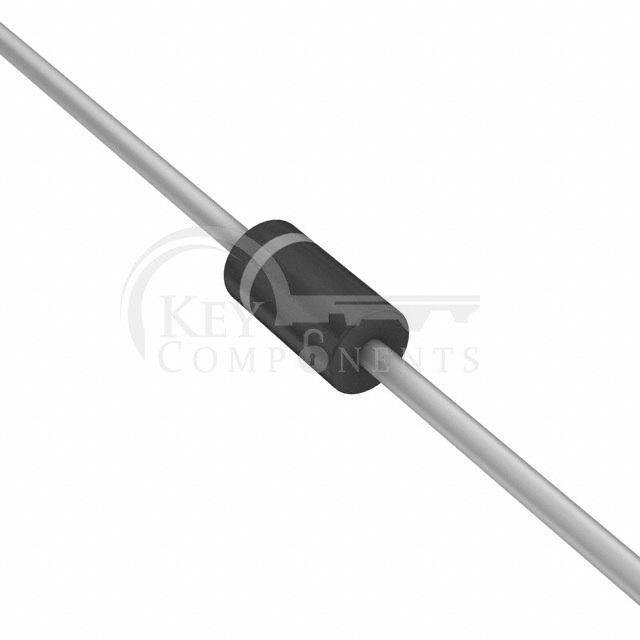

BZX85C5V6
| Manufacturer Part | BZX85C5V6 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | DIODE ZENER 5.6V 1W 5% UNIDIR |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 5.6 V |
| Tolerance: | ±5% |
| Power - Max: | 1.3 W |
| Impedance (Max) (Zzt): | 7 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 200 mA |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Package / Case: | DO-204AL, DO-41, Axial |
| Supplier Device Package: | DO-41G |
